B Series Luminaire_Venas Co.,Ltd

Fixed Ex-proof Luminaires

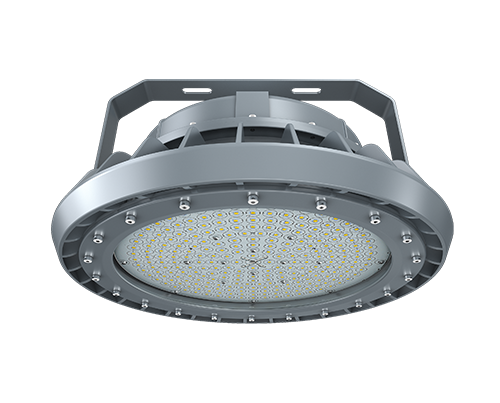

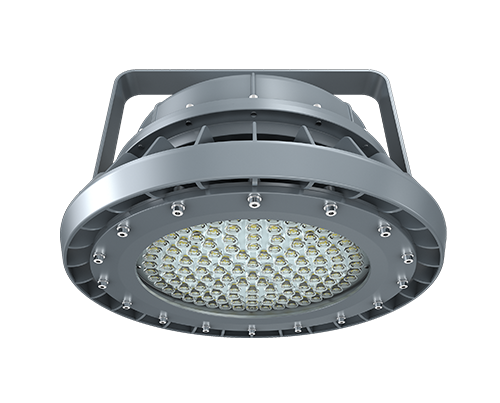

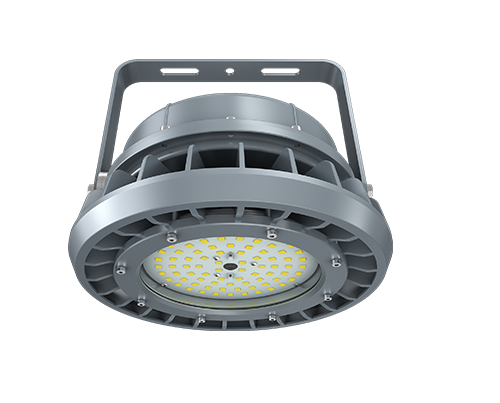

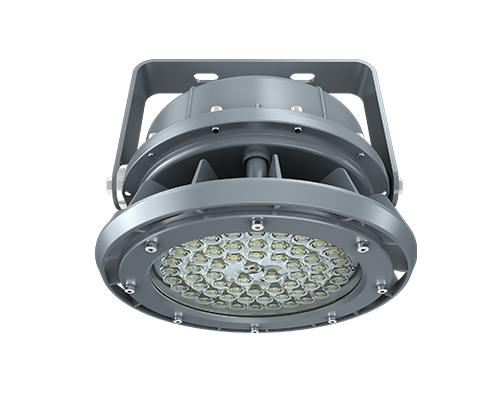

B Series Luminaire

Applications

This luminaire can be used as a spot light,down light,tunnel light,flood light and wall pack for general illumination in hazardous locations.

. All Petroleum Production and Refinery
. Petroleum Loading and Transportation
. Petroleum Storage and Retail
. Paint Facilities
. Pumping Stations in any Environment
. Metal Smelting, Foundry and Fabrication
. Ming Operations and Service
. Ocean Platform Facilities and Structure
. Aerospace Clean Room and Production
. Chemical Production and Storage
. Ocean Vessel Operations
. Military Space Conditions
. Flour and Fine Particle Production and Storage
. Food and Distilling Production
. Electrical Power Generation and Stations
. Other high humidity, high vapor, high dust and high temperature locations

Inquiry

Description

Rating and Certificates
Marking Atex

II2 G Ex mb eb IIC T4 Gb

II2 D Ex tb IIIC T135C Db IP66

II3 G Ex ec IIC T3 Gc

II2 D Ex tb IIIC T85°C Db IP66

Marking IECEX

Ex mb eb IIC T4 Gb

Ex tb IIIC T135°C Db IP66

Ex ec IIC T3 Gc

Ex tb IIIC T85°C Db IP66

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Marine Marking

UL1598, UL1598A

ABS

Other Rating

IP 66

Typical model specification

Product Number	Wattage	Color Temperature	Voltage	Lumens	Warranty	CRI
EX-20W B2YZDA	20	2200K-7000K	AC100-277V(by driver or by IC) Or DC12-48V	2800	5 years	80
EX-40W B2YZDA	40		AC100-277V(by driver or by IC) Or DC12-48V	5600
EX-60W BYZDA	60		AC100-277V(by driver or by IC) Or DC12-48V Or AC200-488V(<65W)	8400
EX-80W BYZDA	80			11200
EX-100W B3YZDA	100		AC100-277V(by driver or by IC) Or DC12-48V Or AC200-488V	14000
EX-120W B3YZDA	120			16800
EX-150W B3YZDA	150			21000
EX-200W B3YZDA	200			28000
EX-250W B4YZDA	250			35000
EX-300W B4YZDA	300			42000
EX-350W B4YZDA	350			49000
EX-400W B4YZDA	400			56000

Warranty

• Only offer 5 year's warranty or any other warranty period specified in the contract for the product from the date of purchase*;
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
