Fixed Ex-proof Luminaires

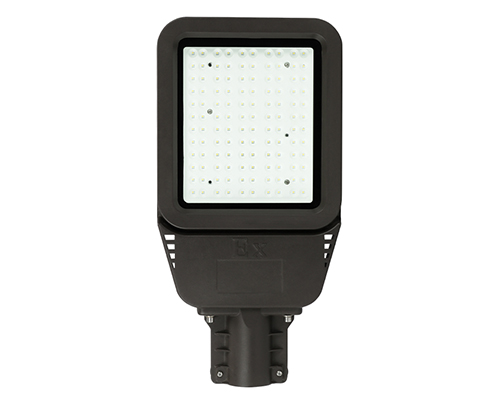

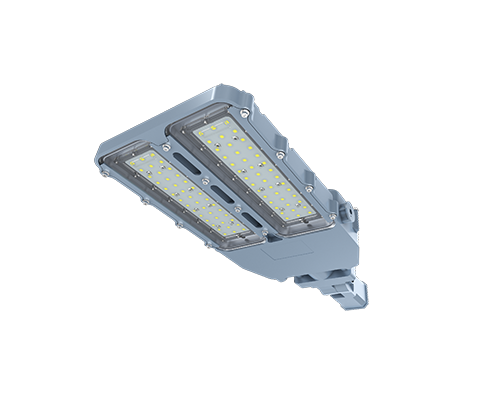

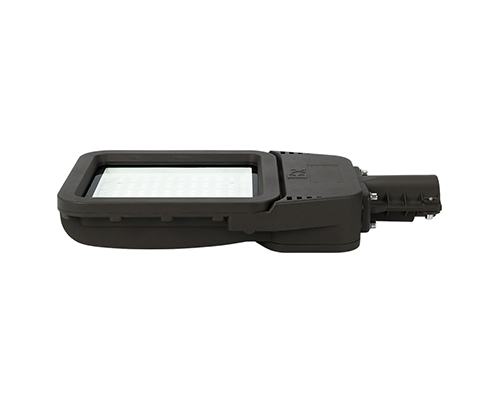

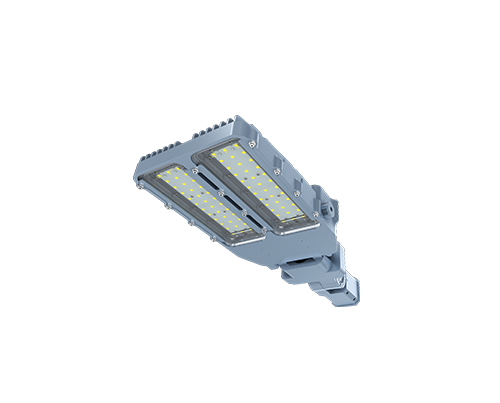

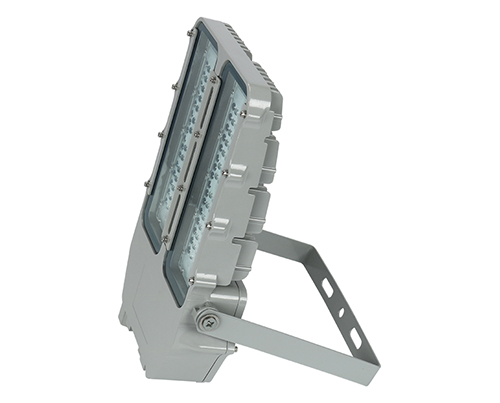

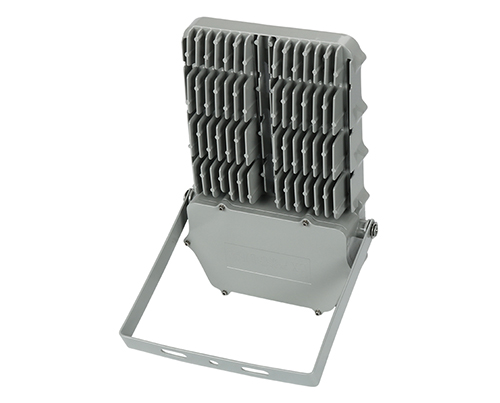

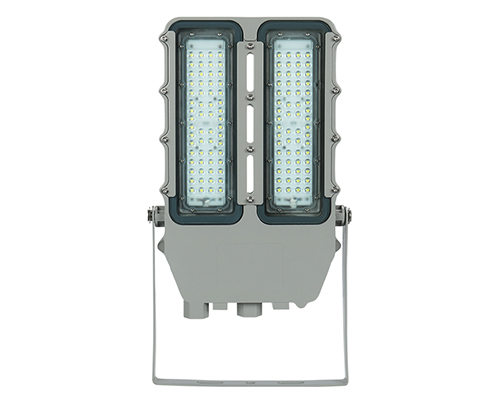

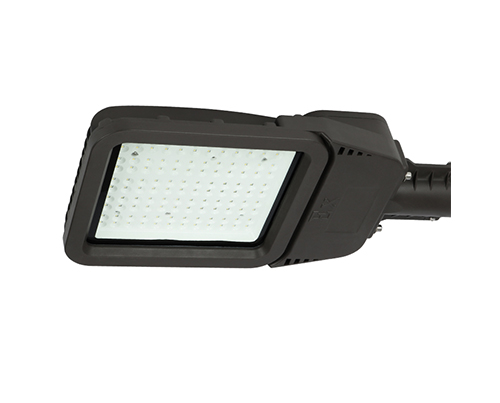

STA Series
Description:
STA Series is an explosion proof street light, mainly used as factory or road lighting. It’s suitable for explosive hazardous environments such as petroleum extraction, storage, chemical industry, medicine, military industry and military facilities. It is waterproof and dust-proof, without internal cleaning and maintenance. The lamp is made of explosion-proof joint surface; beautiful appearance, simple structure and easy installation, it will never corrode and rust in damp, high temperature and other harsh environments.

Feature:
● Designed for harsh locations
● Optimum heat transfer for maximum longevity
● Easy for angle adjustment
● Lifespan up to 100,000 hours
● Available in multiple lengths and a variety of LED    colors
● Linear drive circuit with no flicker or high frequency electronic noise and are suitable for machine vision applications
● Working temperature:-40℃ to +60℃
● The product shell is ADC12
● The explosion-proof glass is physically toughened glass
● All parts of the product have CE certification

Application:
High Temperature Locations, Steel factory, Smelters, Workshop, Foundries



Inquiry
Description
Specifications:

Model EX-xxxW-STA1 EX-xxxW-STA2 EX-xxxW-STA3
Wattage 10~300W 10~200W
UL844 Standard Class I,Division 2 Groups A, B, C, D
Class II,Division1 Groups E, F, G
Class II,Division 2 Groups F, G
Class III
ATEX & IECEx Standard II2 G Ex  eb mb IIC T5/T6 Gb
II2 D Ex tb op is IIIC T95/80℃ Db
Housing Material Aluminum + Tempered Glass
Voltage AC100-305V or AC180-525V
Lumen Efficiency 120-140 lm/W
CCT 2700-7000K
CRI ＞70
Beam Angle TypeIII 10-120 degrees
Operation Temperature -40℃  to 60 ℃
IP Rating IP66/ IP67
IK 10
Dimming 0-10V
