Fixed Ex-proof Luminaires

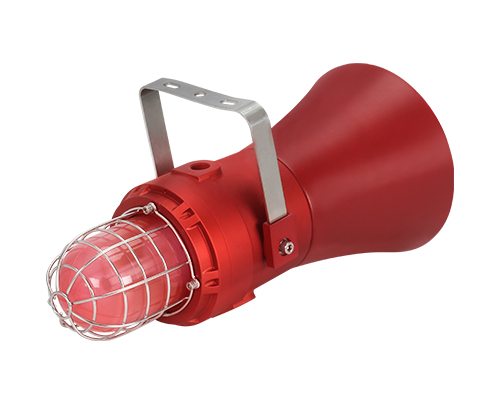

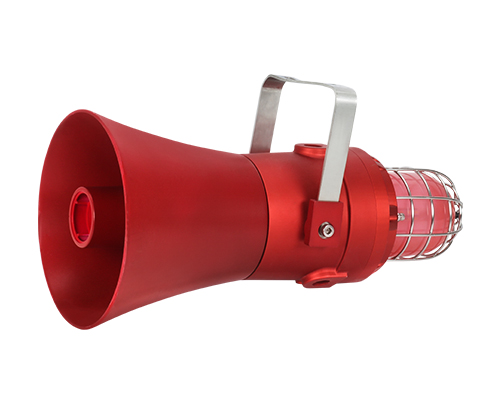

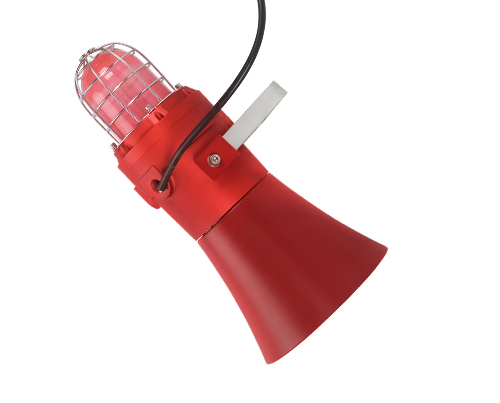

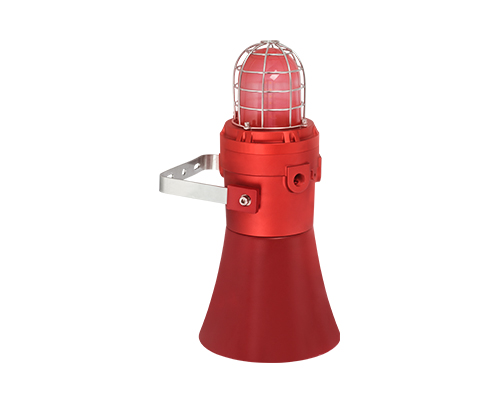

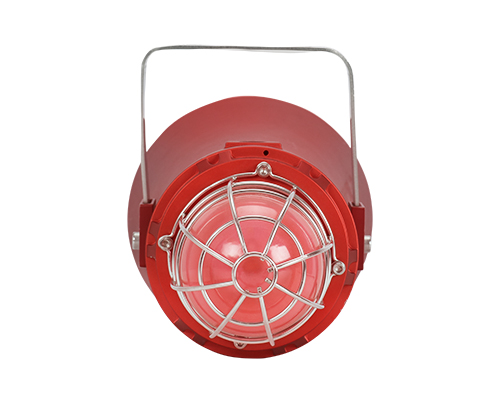

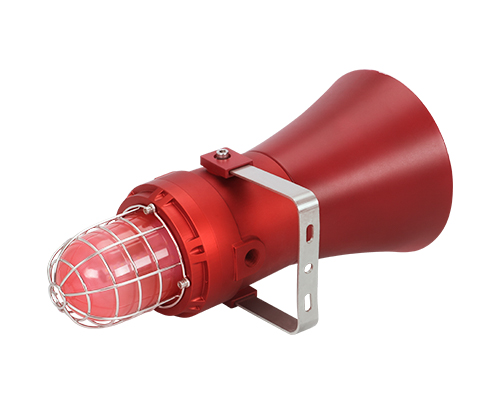

W Series Luminaire
  1. Feature:

    - Multi-functions, can transform into different lights to suit different locations and needs.
    - Various material and color for lamp and amplifier are optional.
    - Diversity of mounting methods.
    - Suitable for Explosion proof environment both marine and on land.
    - Lots of product combination are provided.

Inquiry
Description

Rating and Certificates
Marking Atex

II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80 Db IP66
Marking IECEX
Ex db IIC T6 Gb
Ex tb IIIC T80 Db IP66
Marking UL844
Class I,Division 1,Groups C,D
Class I,Division 2,Groups A,B,C,D
Class II,Division 1,Groups E,F,G
Class II,Division 2,Groups E,F,G
Class III
Marine Marking
UL 1598
ABS and DNV Type Approved
Other Rating
IP 66
IK 10




Typical model


Model Max Wattage/Joule Voltage Decibel Warranty
EX-WSLXxxJSxxdB-1 5J AC220-240V 100/120 5 years
EX-WSLExxWSxxdB-1 35W AC220-240V
DC24V(18-36)
EX-WSLXxxJSxxdB-2 5J AC220-240V
EX-WSLExxWSxxdB-2 35W AC220-240V
DC24V(18-36)
EX-WSSxxdB-1 25W AC220-240V
DC24V(18-36)
EX-WSSxxdB-2
EX-WSLXxxJ-3 5J AC220-240V Non
EX-WSLExxW-3 10W AC220-240V
DC24V(18-36)
