Fixed Ex-proof Luminaires

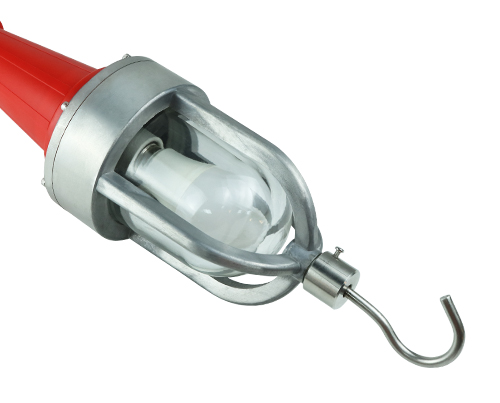

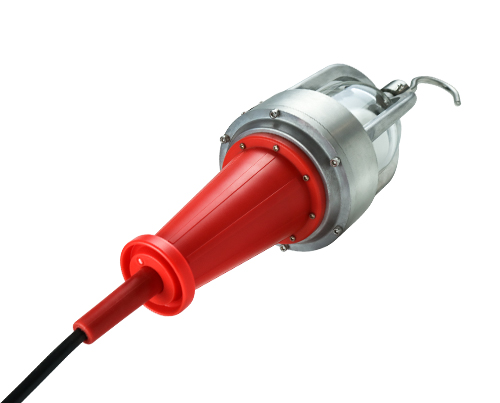

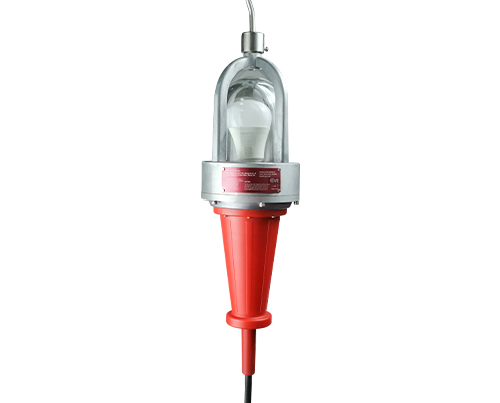

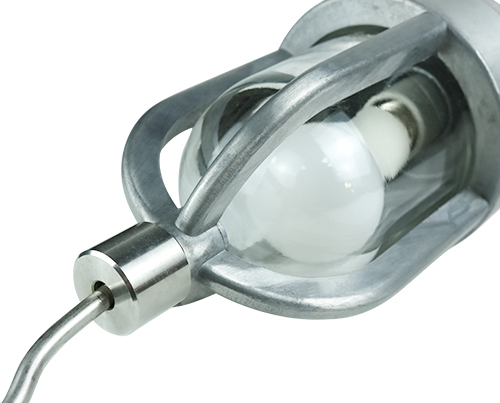

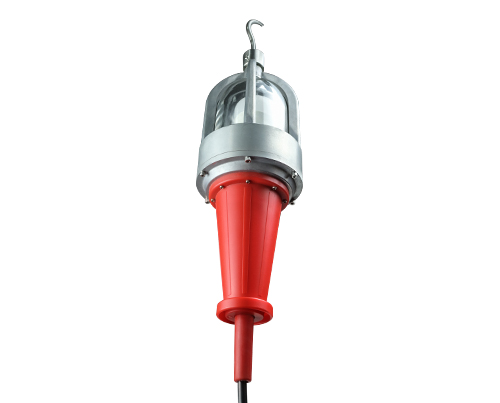

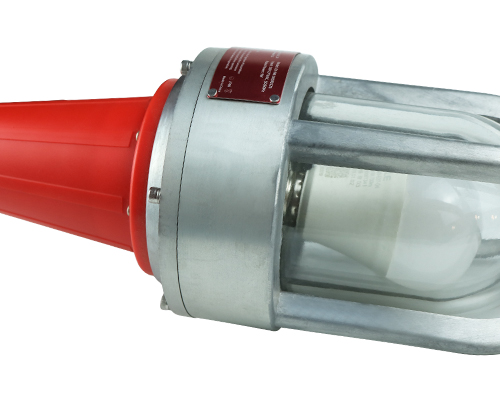

L Series Portable Light

Applications
. All Petroleum Production and Refinery

. Petroleum Loading and Transportation
. Petroleum Storage and Retail
. Paint Facilities
. Pumping Stations in any Environment
. Metal Smelting, Foundry and Fabrication
. Ming Operations and Service
. Ocean Platform Facilities and Structure
. Aerospace Clean Room and Production
. Chemical Production and Storage
. Ocean Vessel Operations
. Military Space Conditions
. Flour and Fine Particle Production and Storage
. Food and Distilling Production
. Electrical Power Generation and Stations
. Other high humidity, high vapor, high dust and  high temperature locations

Inquiry
Description

Rating and Certificates
Marking Atex

II 2 G Ex db op is IIC T4/T5 Gb
Il 2 D Ex op is tb IIIC T135° CT Db
Ex op is tb IIIC T135° CT Db
Marking IECEX
Ex db op is IIC T4/T5 GB
Marking UL844 (North American)
Class I,Division 1 Groups B,C,D
Class I  I,Division 1 Groups F,G
Class II,Division 2 Groups F,G
Class III
Marine Marking
UL 1598
ABS and DNV Type Approved
Other Rating
IP 67
IK 10



Specification


Product Number Wattage Color Temperature Voltage Lumens Warranty CRI
EX-5W LXYZDA 5 2200K-7000K AC100-277/220-480V 650 5 years 80
EX-7W LXYZDA 7 910
EX-9W LXYZDA 9 1170
EX-10W LXYZDA 10 1300
EX-15W LXYZDA 15 1950
EX-20W LXYZDA 20 2600
EX-30W LXYZDA 30 2900




Warranty
• Only offer 5 year's warranty or any other warranty period specified in the contract for the product from the date of purchase*;

• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
