Fixed Ex-proof Luminaires

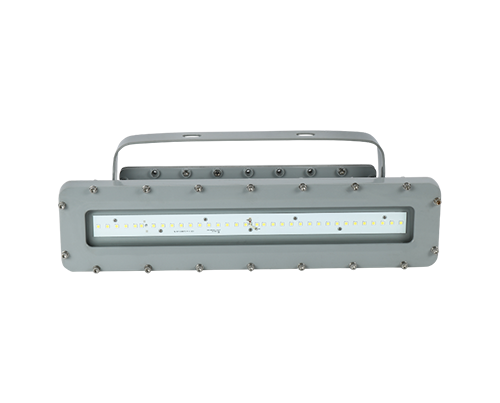

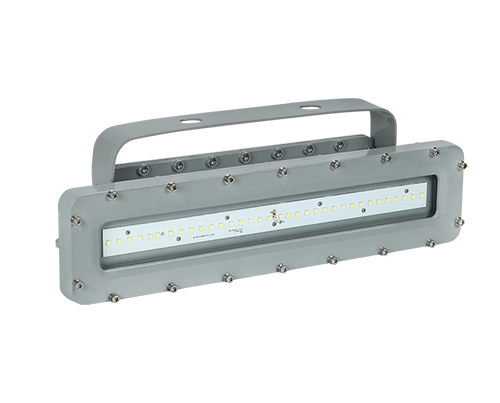

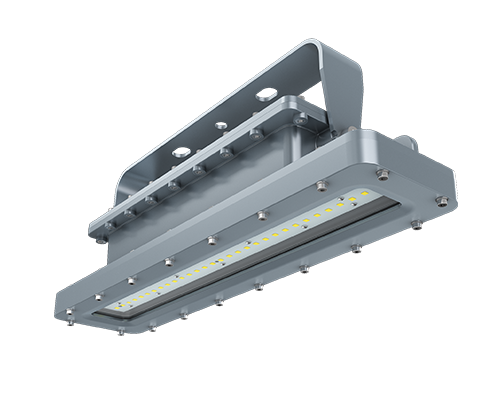

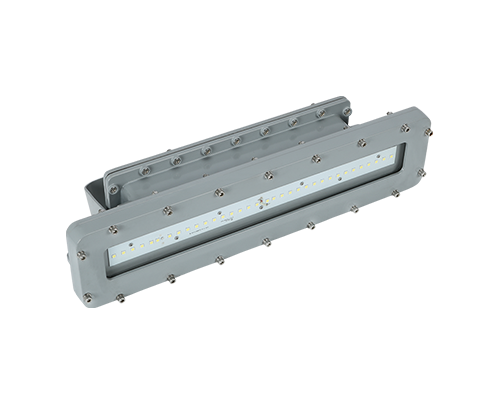

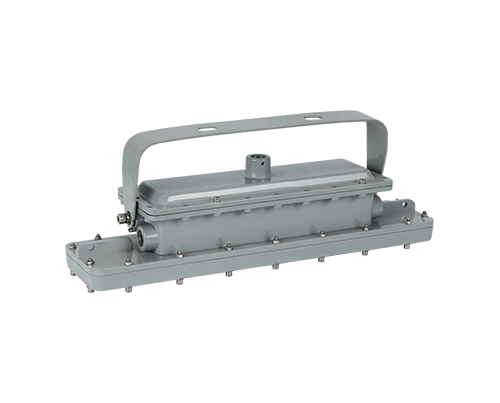

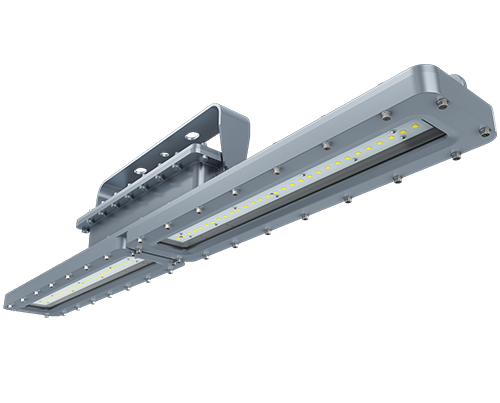

I Series Luminaire

Applications
This luminaire can be used as strip light,tunnel light,flood light and wall light for general illumination in hazardous locations.

. All Petroleum Production and Refinery
. Petroleum Loading and Transportation
. Petroleum Storage and Retail
. Paint Facilities
. Pumping Stations in any Environment
. Metal Smelting, Foundry and Fabrication
. Ming Operations and Service
. Ocean Platform Facilities and Structure
. Aerospace Clean Room and Production
. Chemical Production and Storage
. Ocean Vessel Operations
. Military Space Conditions
. Flour and Fine Particle Production and Storage
. Food and Distilling Production
. Electrical Power Generation and Stations
. Other high humidity, high vapor, high dust and  high temperature locations

Inquiry
Description

Features

High efficacy: up to 140lm/W

CRI>80

Surface mounting and pendant installations

Wide and narrow optics for uniform illumination

Copper free aluminum

High vibration resistance


Rating and Certificates

Marking Atex
Il2 G Ex db op is IIB T4/T5 Gb
Il2 D Ex op is tb IIIC T135°C Db IP66
Marking IECEX
Ex db op is IIB T4/T5 Gb
Ex op is tb IIIC T135°C Db IP66
Marking UL844(North American)
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marking Marine
UL1598, UL1598A
ABS
Other Rating
IP 66



Typical model specification

Product ID Wattage Lumens CCT Voltage CRI Emergency Working Hours
EX-20W I2YZDA 20W 2800

2700K-7000K

AC100-277V

AC200-480V

DC12-36V

>70

3 Hours

50,000+
EX-40W I2YZDA 40W 5600
EX-60W I2YZDA 60W 8400
EX-40W I4YZDA 40W 5600
EX-60W I4YZDA 60W 8400
EX-80W I4YZDA 80W 11200
EX-100W I4YZDA 100W 14000
EX-120W I4YZDA 120W 16800



Warranty

• Only offer 5 year's warranty or any other warranty period specified in the contract for the product from the date of purchase*;
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
