Fixed Ex-proof Luminaires

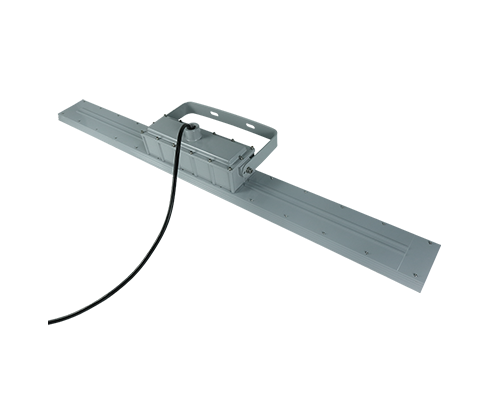

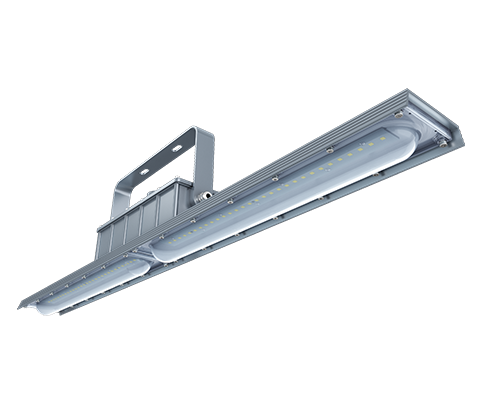

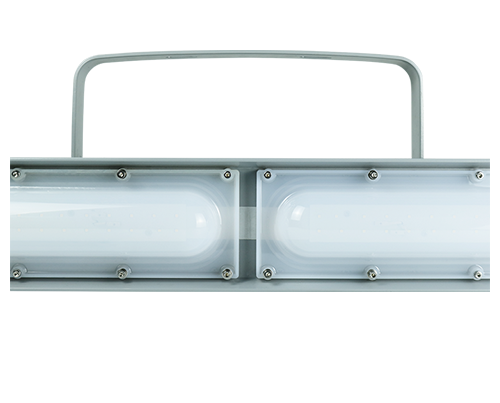

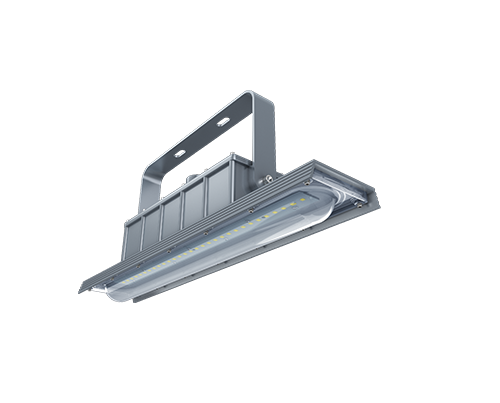

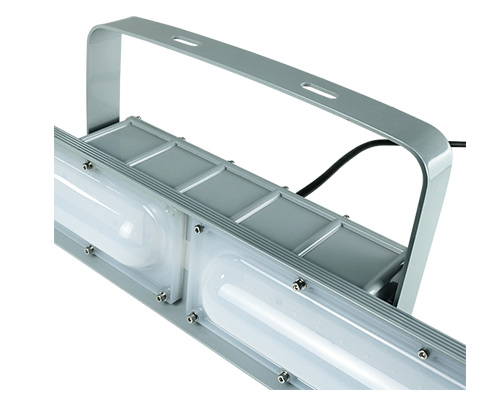

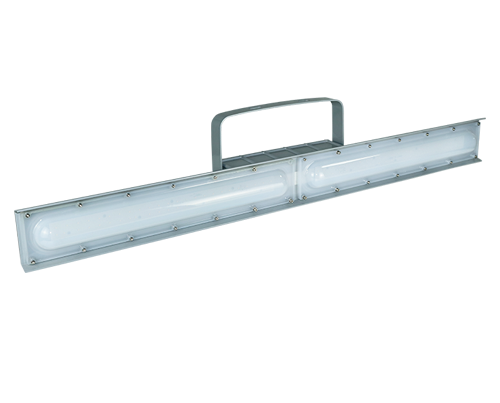

H Series Luminaire

Applications
This luminaire can be used as strip light,tunnel light,flood light and wall light for general illumination in hazardous locations.

. All Petroleum Production and Refinery
. Petroleum Loading and Transportation
. Petroleum Storage and Retail
. Paint Facilities
. Pumping Stations in any Environment
. Metal Smelting, Foundry and Fabrication
. Ming Operations and Service
. Ocean Platform Facilities and Structure
. Aerospace Clean Room and Production
. Chemical Production and Storage
. Ocean Vessel Operations
. Military Space Conditions
. Flour and Fine Particle Production and Storage
. Food and Distilling Production
. Electrical Power Generation and Stations
. Other high humidity, high vapor, high dust and  high temperature locations

Inquiry
Description

Features
High efficacy: up to 140lm/W

CRI>80

Surface mounting and pendant installations

Wide and narrow optics for uniform illumination

Copper free aluminum

High vibration resistance

Rating and Certificates

Marking Atex

Il3 G Ex ec IIC T5/T6 Gc
Il2 D Ex tb IIIC T80/100°C Db IP66
Marking IECEX
Ex ec IIC T5/T6 Gc
Ex tb IIIC T80/100°C Db IP66
Marking UL844(North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marking Marine
UL1598, UL1598A
ABS
Other Rating
IP 66

IK 10




Typical model specification


Product Number Wattage Color Temperature Voltage Lumens Warranty CRI
EX-20W H2YZDA 20 2200K-7000K AC100-277V
IC 100-277V
AC 200-488V
DC 12-48V		 2800 5 years 80
EX-40W H2YZDA 40 5600
EX-40W H4YZDA 40 5600
EX-60W H4YZDA 60 8400
EX-80W H4YZDA 80 11200




Warranty
• Only offer 5 year's warranty or any other warranty period specified in the contract for the product from the date of purchase*;

• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
