Fixed Ex-proof Luminaires

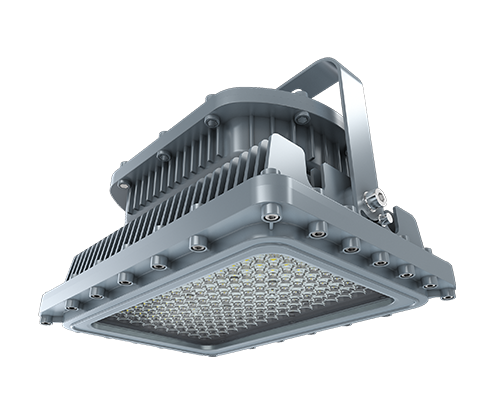

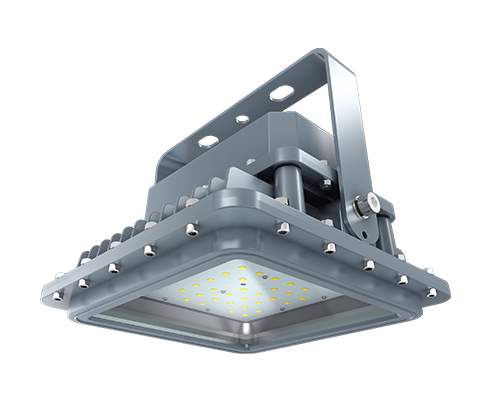

D Series Luminaire

Applications
This luminaire can be used as a spot light,down light,tunnel light,flood light and wall pack  for general illumination in hazardous locations.

. All Petroleum Production and Refinery
. Petroleum Loading and Transportation
. Petroleum Storage and Retail
. Paint Facilities
. Pumping Stations in any Environment
. Metal Smelting, Foundry and Fabrication
. Mining Operations and Service
. Ocean Platform Facilities and Structure
. Aerospace Clean Room and Production
. Chemical Production and Storage
. Ocean Vessel Operations
. Military Space Conditions
. Flour and Fine Particle Production and Storage
. Food and Distilling Production
. Electrical Powder Generation and Stations
. Other high humidity, high vapor, high dust and  high temperature locations


Inquiry
Description

Rating and Certificates
Marking UL844(North American)

Class I, Div. 1, Groups C, D
Class I, Div. 2, Groups A,B,C,D
Class II, Div. 1, Groups E,F,G
Class II, Div. 2, Groups F,G
Class III
Marine Marking
UL 1598A
ABS
Other Rating
IP 66
IK 10




Typical model specification


Model Wattage Color Temperature Voltage Lumens Warranty CRI Emergency Time
EX-20W D2YZDA 20W 2200K-7000K AC100-277V (by driver or by IC)
Or AC200-488V (<65W)
Or DC12-48V		 2800 5 years 80 3 Hours
EX-40W D2YZDA 40W 5600
EX-60W D2YZDA 60W 8400
EX-80W D2YZDA 80W 11200
EX-100W DYZDA 100W AC100-277V (by driver or by IC)
Or AC200-488V
Or DC12-48V		 14000
EX-150W DYZDA 150W 21000
EX-200W DYZDA 200W 28000



Warranty


• Only offer 5 year's warranty or any other warranty period specified in the contract for the product from the date of purchase*;
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
