Fixed Ex-proof Luminaires

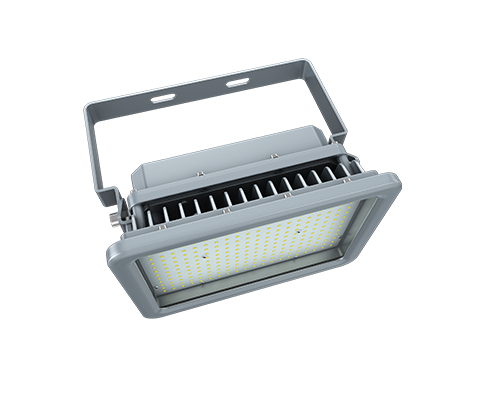

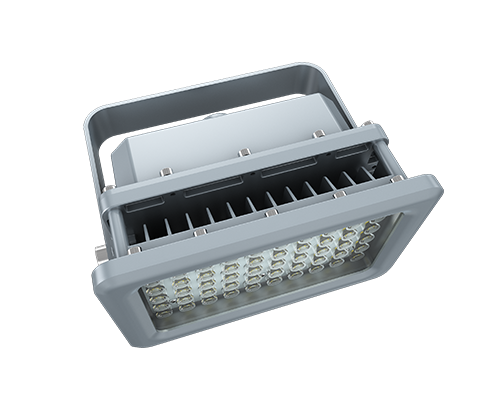

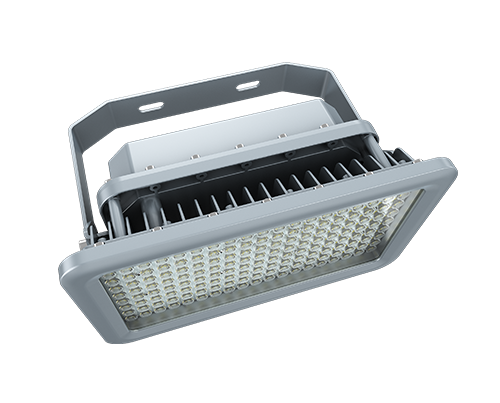

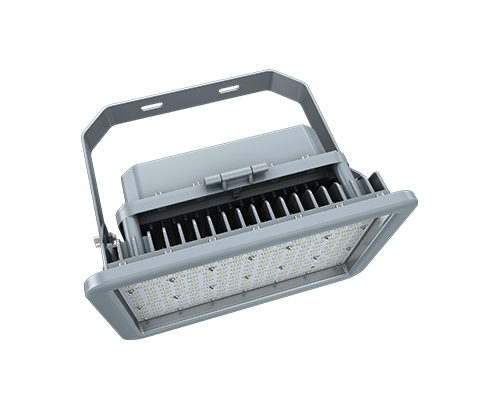

A Series Luminaire

Applications

This luminaire can be used as a spot light,down light,tunnel light,flood light and wall pack  for general illumination in hazardous locations.

. All Petroleum Production and Refinery
. Petroleum Loading and Transportation
. Petroleum Storage and Retail
. Paint Facilities
. Pumping Stations in any Environment
. Metal Smelting, Foundry and Fabrication
. Ming Operations and Service
. Ocean Platform Facilities and Structure
. Aerospace Clean Room and Production
. Chemical Production and Storage
. Ocean Vessel Operations
. Military Space Conditions
. Flour and Fine Particle Production and Storage
. Food and Distilling Production
. Electrical Power Generation and Stations
. Other high humidity, high vapor, high dust and  high temperature locations

Inquiry
Description

Rating and Certificates
Marking Atex

II 3 G Ex ec IIC T3 Gc
Il 2 D Ex tb IIIC T103°C Db IP66
II 2 G EX mb eb IIC T3 Gb
II 2 D EX tb IIIC T125°C Db IP66
Marking IECEX
Ex ec IIC T3 Gc
Ex tb IIIC T103°C Db IP66
EX mb eb IIC T3C Gb
EX tb IIIC T125°C Db IP66
Marking UL844 (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL 1598, UL1598A
ABS
Other Rating
IP 66


Typical model

Product Number Wattage Color Temperature Voltage Lumens Warranty CRI
EX-20W A2YZDA 20 2200K-7000K AC100-277V(by driver or by IC)
Or DC12-48V		 2600 5 years 80
EX-40W A2YZDA 40 5200
EX-60W A2YZDA 60 7800
EX-80W AYZDA 80 AC100-277V(by driver or by IC)
Or DC12-48V
Or AC200-488V(<100W)		 10400
EX-100W AYZDA 100 14000
EX-150W A3YZDA 150 AC100-277V(by driver or by IC)
Or DC12-48V
Or AC200-488V		 21000
EX-180W A3YZDA 180 25200
EX-200W A3YZDA 200 28000
EX-150W A4YZDA 150 21000
EX-180W A4YZDA 180 25200
EX-200W A4YZDA 200 28000
EX-300W A4YZDA 300 42000
EX-400W A4YZDA 400 56000



Warranty


• 5 year's limited warranty or any other warranty period specified in the contract for the product takes effect from the date of purchase*;
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are        not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
