ES05 Emergency Exit Sign

Ex-proof Exit Luminaires

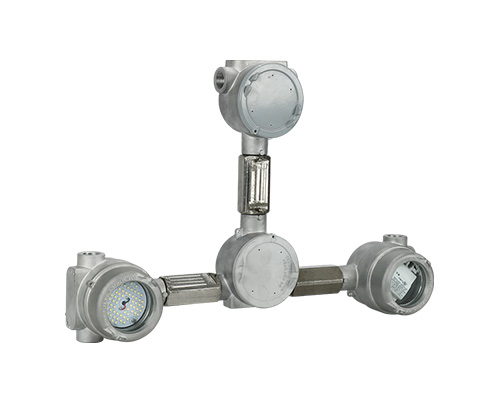

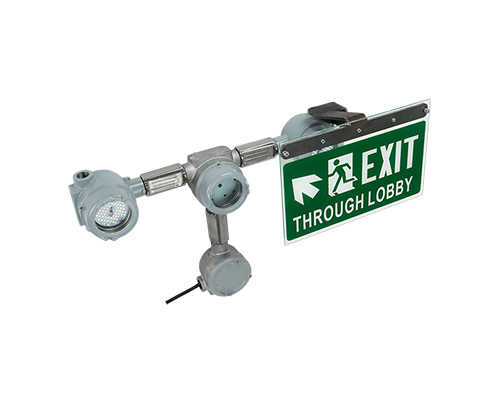

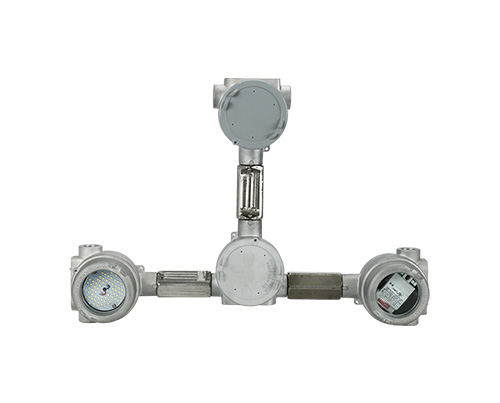

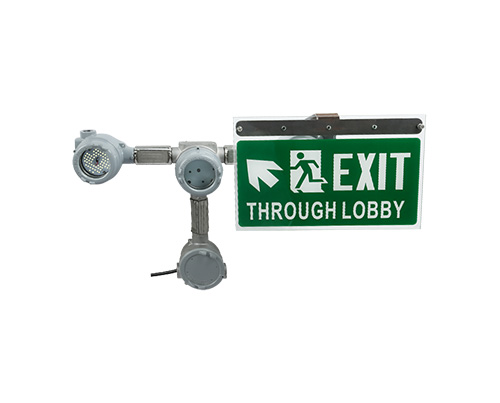

ES05 is a series explosion proof emergency bug eye LED exit sign light fixture which is integral for hazardous areas that require emergency illumination in the event of power failure or power outage.

The light fixture features brown-out, short circuit and voltage surge protection and has a low voltage disconnect that prevents the battery from being damaged caused by deep discharge.

Inquiry

Description

Features:

• Low power consumption.

• Instant on/off operation, no flickering, delays or buzzing.

• Fixture constructed of extruded corrosion resistant

copper free aluminum alloy.

• Superior color rendering.

• Powder coated aluminum fixture body.

• Vibration/impact resistant.

• Significantly cooler operation.

• Less frequent outages, higher output improves

workplace safety.

Application:

• In locations deemed hazardous due to the potential presence of

flammable vapors or gases, or combustible dusts.

• In any building or enclosed area where people work,

where illuminated exit signs are required.

• to provide distinct, highly visible exit marking.

• To indicate the direction of travel to exits

Standard materials:

• Body: Stainless steel and aluminum

• Sign panel: Glass

Parameters:

• Wattage: 3-6W

• Voltage: AC 120-277V

• Operating temperature: 0-45℃

• CRI: 80

• CCT: 5000K

• Emergency Time: >1.5 hours

• IP66
