Ex-proof Electronics

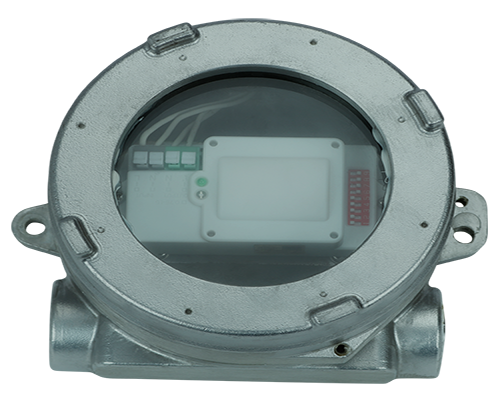

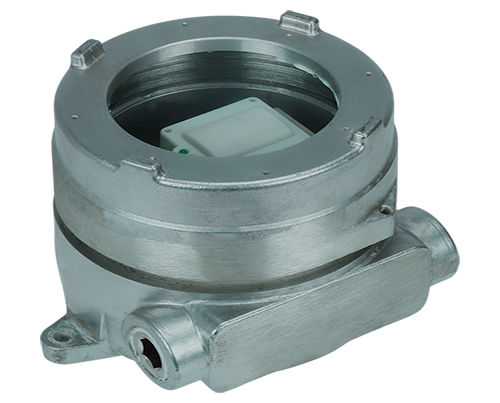

Ex-proof Motion Sensor
ATEX and IECEx certified for use in hazardous areas.
UL standard: 1203.
CSA standard: C22.2 No. 30.
Copper-free aluminum body, plastic-sprayed surface.
Compact and small housing, can be fixed inside most luminaires.
An innovative and active motion detector with 5.8GHz HF system. Wide detection area, up to 16m in diameter.
Automatic switch on/off based on motion and ambient light level.


Inquiry
Description
Applications
For safe use in Zones 1 and 2 potentially explosive gas and Zones 21 and 22 dust atmospheres.

Rating and Certificates
Marking ATEX:
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80℃ Db IP66/67
Marking IECEx:
Ex db IIC T* Gb
Ex tb IIIC T*℃ Db
Marking UL844:
Class I, Division 1, Groups A, B, C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Standards:
EN IEC 60079-0, EN IEC 60079-1, EN IEC 60079-31, Ul1203;
CSA Standard:
C22 No.30
Protection Class:
IP66/IP67

Basic Data
Housing Copper-free aluminum
Cable Entry Port (M20, M25)×1.5 plugs and NPT1/2”, NPT3/4” plugs
Rated Voltage 120~277VAC, 50Hz
Rated Load 120V@400W; 220-240V@800W; 277V@1000W
Transmitting Power <0.5mW
Ambient Temperature  -20℃ to+60℃
HF System 5.8GHz±75MHz, ISM wave band
Power Consumption ≤0.5W(standby)
Detection Zone Max. (D x H): 16m x 15m
Detection Sensitivity 25%/50%/75%/100%
Hold Time 5s/30s/90s/3min/20min/30min
Daylight Sensor 5Lux/15Lux/30Lux/50Lux/100Lux/Disable
Mounting Height 15m(Max.)
Motion Detection 0.5~3m/s
Detection Angle
150° (wall installation),
360° (ceiling installation)
Connection Thread Metric Thread and NPT Thread
Type of Flameproof Joint Threaded Joint
