LED Tube Series

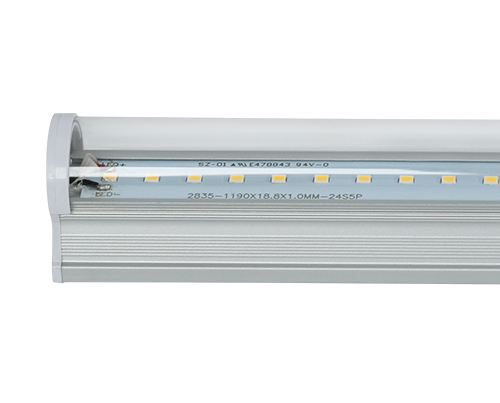

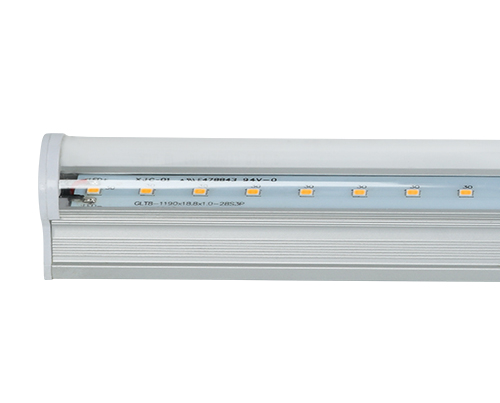

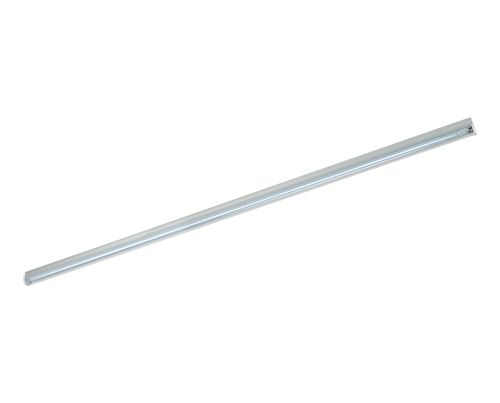

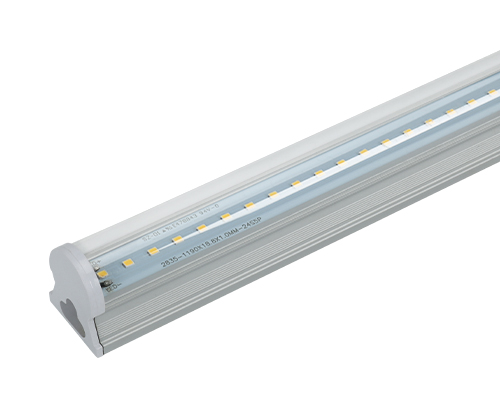

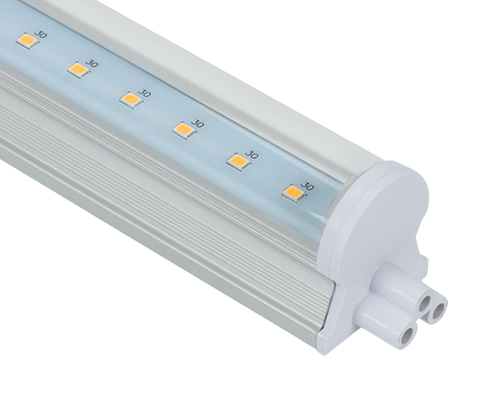

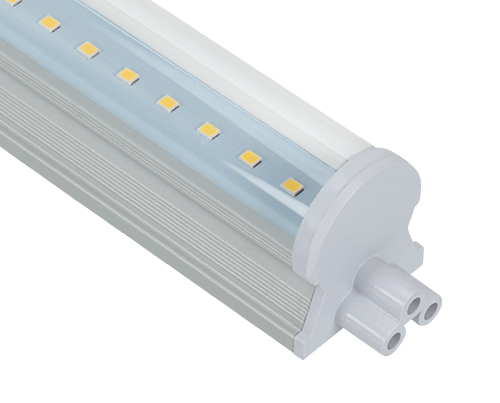

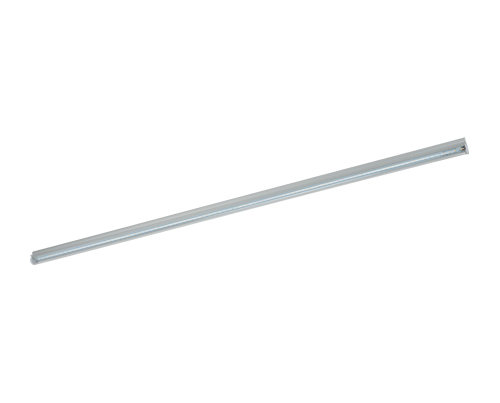

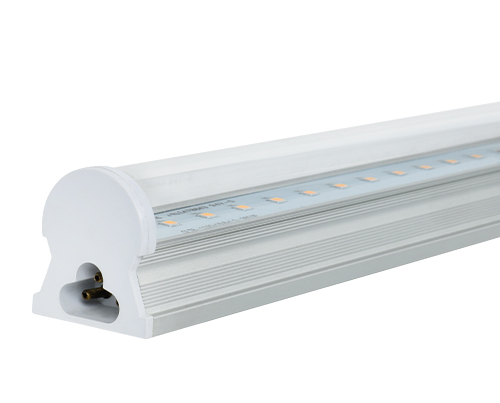

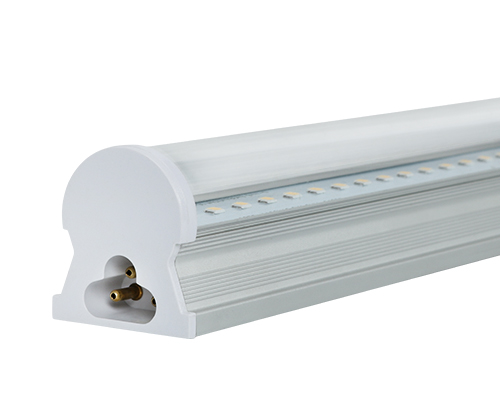

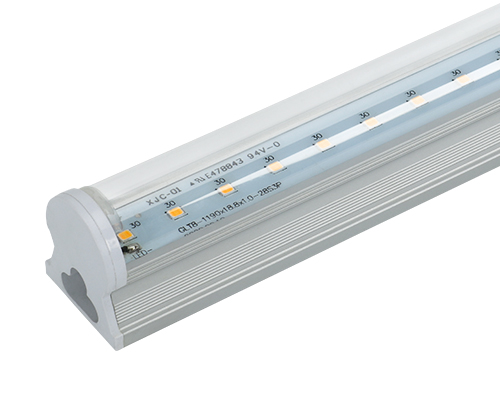

T8 Integrated LED Tube
Application:
General illumination for home, office, restaurant, hotel, mall, bus, train, warehouse, parking lots etc; task lighting for cabinets, cupboards etc in your home, restaurant, and kitchen or any other places where accent  lighting is required. Retail display lighting for the articles in your stores and shops; back lighting for square billboards or advertisement boards.

Certified:
T8 integrated light have been certified by IEC, TUV, UL, cUL and RoHs certification. So they meet the necessary safety and reliability standards and better quality

Bright Light & Premium:
125 lumens per watt and project light in a 120 degree fashion and can replace a HPS/HID/Halide lights, 5000K light color ensures a bright clear light. Grow light bulb are the newest in energy efficient lighting technology

High Quality:
Extrusion aluminum Heat Sink to ensure the heat dissipation, PC diffuser good corrosion resistance, and more high quality material used in manufacturing to ensure long life performance- 50,000 Hours life-span.

Inquiry
Description

Basic Data：

Lifespan: 50,000 hours
PC cover: Frosted
Power Factor: More than 99
Certificates: cUL, UL, TUV

Dimming Option


Model List：

 Product ID Wattage

Length(ft)

 Lumens
ZY-T8-10W600 BINS  10W 2ft 1300
ZY-T8-10W1200 BINS 10W 4ft 1300
ZY-T8-12W1200 BINS 12W 4ft 1560
ZY-T8-15W1200 BINS 15W 4ft 1950
ZY-T8-18W1200 BINS 18W 4ft 2160
ZY-T8-40W2400 BINS 40W 8ft 5200



Electronical Parameters：
Input Voltage: AC100-277V/AC100-480V
Frequency: 50-60Hz
Power Supply Efficiency: 92%
PFC: >0.99



Other Parameters：
1) Operating Temperature: -20-50℃
2) Stock Temperature: -20-70℃
3) Aluminium edge + PC diffuser

4) PF>0.99  Class 2 Driver. Meanwell driver and James Driver
5) UL Code: E358902  UL standard:UL1598, UL8750 and CSA C22.2 No.250-0.08 LUMINAIRES
6) Warranty: from 3 years to 5 years



Warranty：
• Only offer 3 year's or 5 year's warranty or any other warranty period specified in the contract for the product from the date of purchase:
• Invoice or shipment bill is required to claim the warranty.
• The warranty policy only requires manufacturer to repair the defective product or send substitute for replacement.
• Installation labor, electricity cost and other related cost will not be covered by the manufacturer warranty policy.
• Warranty doesn't cover the defect caused by inappropriate use, especially if directions of the instructions for use are not observed, normal abrasion as well as failures which affect the value or use of the product insignificantly.
