Mobile Ex-proof Luminaires

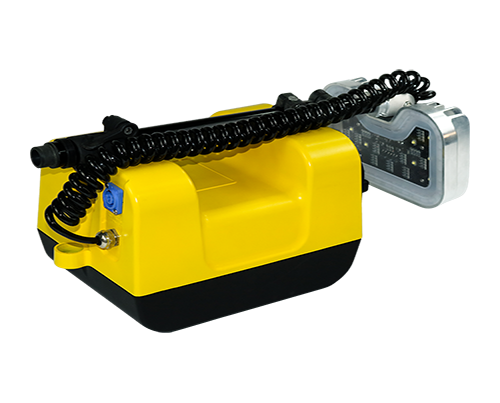

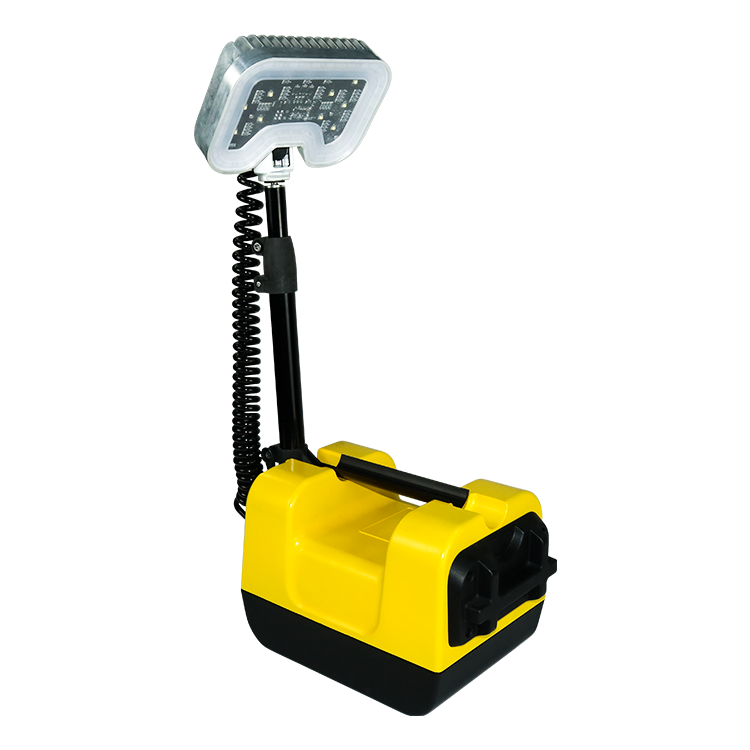

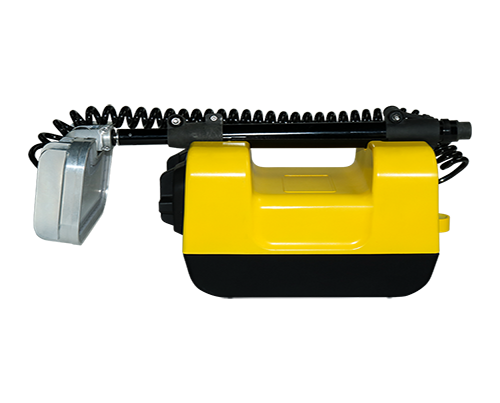

EX-MV01 Ex-proof Portable Light
Introducing the Venas EX-MV01, the world’s first Class I Division 1, ATEX Zone 0 and IECEx ia safety certified remote area light. Now you can take remote area lighting to hazardous areas around the globe. The 125° beam angle along with up to 1,600 lumens and providing up to 10 hours of run time, this LED Lantern will support full work shifts and deliver safe situational awareness.
Weighing only 15.4 pounds and completely collapsible, makes for easy carry and quick set ups.
The dual light modes, High/Low provide flexible options and is equipped with a 30 minute visible low battery warning indicator.
Safety approved for the most volatile work areas, this LED Lantern is safe and one of the most compact, high output lanterns on the market.
Inquiry
Description
Features
• 3 pre-set light output levels
• Up to 1,600 lumens (calculated)
• Up to 10 hrs of run time
• Full time battery level indication with low level flashing indicator
• Deployable mast with 360 degree rotation
• Multiple deployment positions
• Valid over the entire temperature range from -20°C to 40°C (-4 ºF to 104ºF)

Specifications
UL913,UL60079-11Standard
Class I, Division 1, Groups A, B, C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
ATEX Zone 0 and IECEx ia
UL913,UL60079-11 Standard
ATEX Standard
II1 G Ex ia op is IIC T4 Ga
II1 D Ex op is ta IIIC T135℃ Da IP66
IECEx Standard
Ex ia op is IIC T4 Ga
Ex op is tb IIIC T135℃ Db IP66
Housing Material Plastic
Power Rating   5-19.5W
Output Power <19.5W, 1600lm(strong light); 9.5W, ≥500lm(working light)
CCT Range 30:3000K, 40:4000K, 50:5000K, 65:6500K
Voltage Rating 10.8V(Battery); AC100V/277V(Charger)
Battery Capacity 10.8V, 9Ah
Charging Voltage DC 10.8V-14.4V
Working Time 10h(max)
Lumens 1600 lm
Beam Angle 125 Degrees
Lamp Adjustment Angle 0-360 degrees
Operating Temperature -20℃ to +40℃
                IP                  66
