Fixed Ex-proof Luminaires

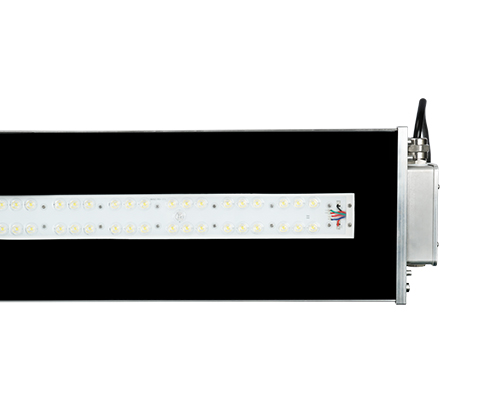

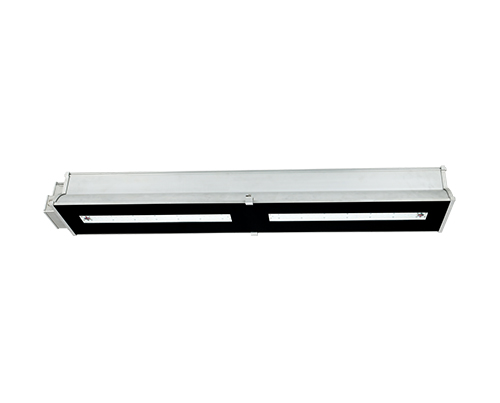

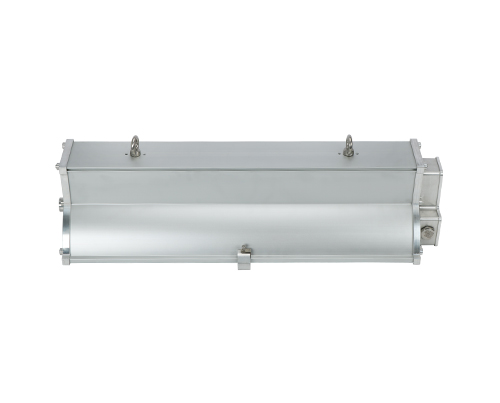

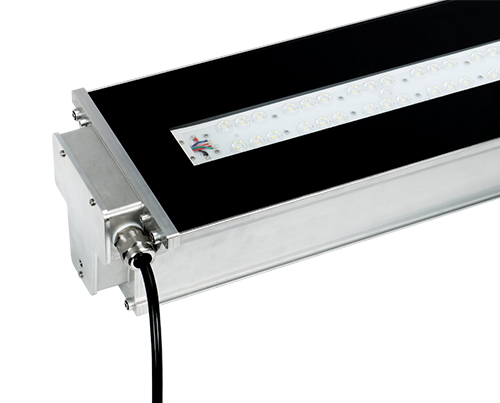

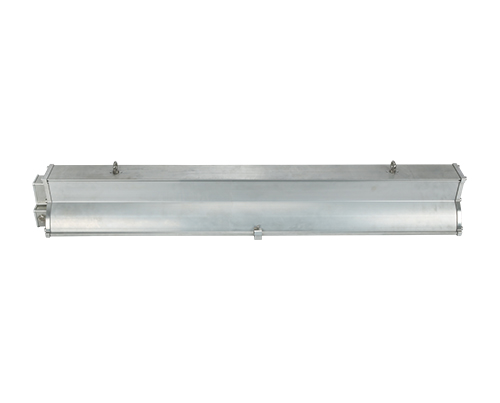

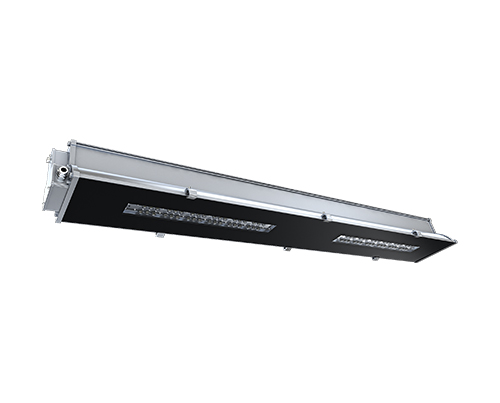

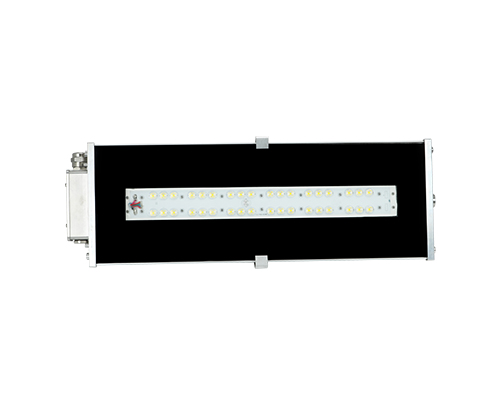

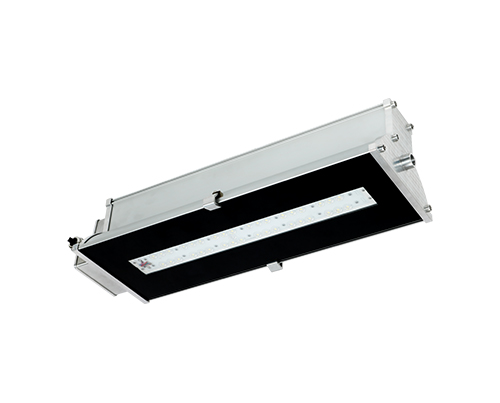

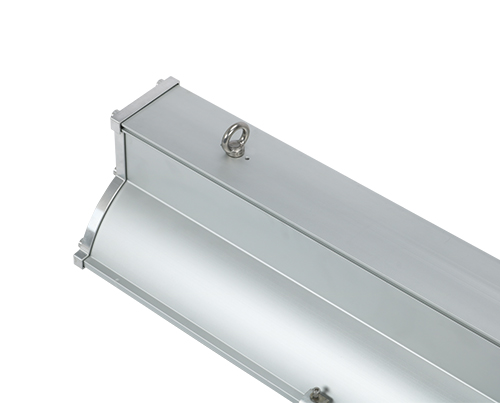

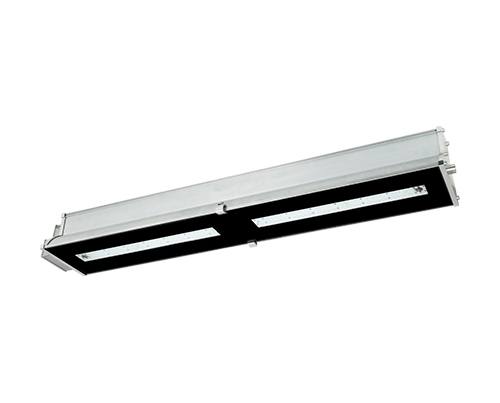

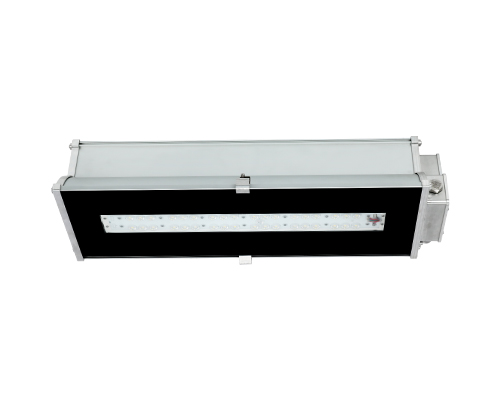

FLE Series
Description:
FLE Series is designed for hazardous environments where flammable gases or vapors, flammable liquids, combustible dust and/or ignitable fibers may exist.
Its rugged design and efficient heat dissipation stands up to challenging conditions while delivering long life and high lumen performance.

Applications
Oil and Gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Chemical industry
• All types of paint facilities
• Chemical production and storage
Ocean, marine and aerospace field
• Ocean platform operation
facilities and structure
• Aerospace clean room and production
• Ocean vessel operations
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Food and alcohol industry
• Flour and fine particle production
and storage
• Food and distilling production
• Alcohol industry
Other high humidity, high dust,
high temperature, vapor locations

Inquiry
Description
Model EX-xxxW-FLE1 AZDA EX-xxxW-FLE2 AZDA
Wattage 10/20/30/40W 40/50/60/70/80W
EN-60079 II2 G Ex op is  eb mb IIC T5/T6 Gb
II2 D Ex op is tb IIIC T95/80℃ Db
EN 60079-0 EN-60079-31 EN-60079-18
Housing Material Die-cast Aluminum and A6061
Cover Transparent Tempered Glass
Voltage AC100-277V, 50/60Hz; DC36V
Lumen Efficiency 130 lm/W
CCT 2700-6500
CRI 80
Beam Angle 40°/60°/90°
Operation Temperature -20℃ to +40℃(T6), -40℃ to +55℃(T5)
IP Rating IP66
IK 10
Dimming 0-10V
